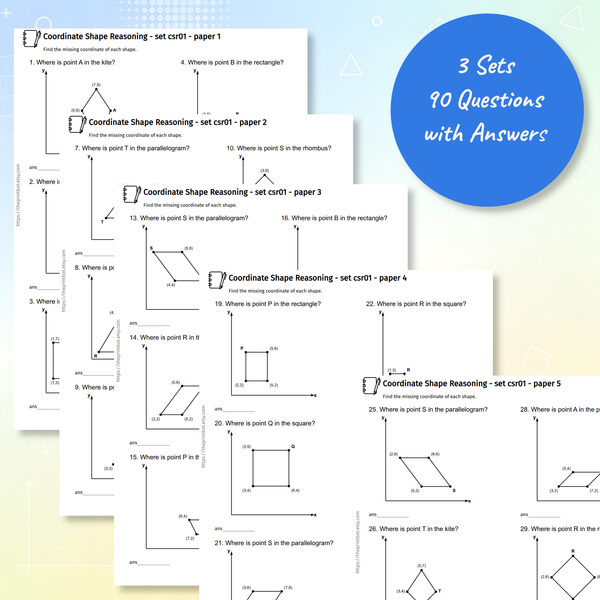

Coordinate Shape Reasoning Practice Test Worksheets
Coordinate shape reasoning questions ask you to find a missing corner by using shape properties on a grid. The key is to match x-values, y-values, side movements, and lines of symmetry carefully.
For students who can plot points, but need focused practice reasoning from rectangles, squares, parallelograms, kites, and rhombuses.
Etsy listing opens in a new tab. Checkout and downloads are handled on Etsy.com.
What Do Coordinate Shape Reasoning Questions Look Like?
Students are given a coordinate diagram with labelled points forming part of a shape such as a rectangle, square, parallelogram, or kite. They must use the geometric properties of the shape—such as equal opposite sides, parallel lines, or vertical and horizontal symmetry—to find the missing coordinate. Here is a worked example.
Complete a Square
Question: Where is point S in the square?
Worked Method
Step 1: The top-right corner is directly above the bottom-right corner, so it keeps the same x-coordinate: x = 6.
Step 2: The top-right corner is on the same horizontal line as the top-left corner, so it keeps the same y-coordinate: y = 7.
Answer: S = (6, 7).
Tip: For rectangles and squares with sides parallel to the axes, read x from the point directly below or above, and y from the point directly to the left or right.
Rules to Help You Solve Coordinate Shape Reasoning Questions
As shown in the square example above, shape properties turn known coordinates into missing ones. Most questions are solved by checking horizontal levels, vertical lines, equal side movements, or symmetry.
Rule 1: Match horizontal y-values
Corners on the same horizontal side have the same y-coordinate.
Example: If a horizontal top side starts at (1, 7), its other endpoint also has y = 7.
Rule 2: Match vertical x-values
Corners directly above or below each other have the same x-coordinate.
Example: If a vertical right side starts at (6, 2), its other endpoint also has x = 6.
Rule 3: Copy the side movement
In a parallelogram, opposite sides have equal lengths and are parallel. Compare both sides in the same direction, such as left to right, to get the same change in x and y.
Example: If the top side goes 4 units right from top-left to top-right, the bottom side goes 4 units right from bottom-left to bottom-right.
Rule 4: Reflect across the middle line
When a kite or rhombus has a vertical line of symmetry through its top and bottom vertices, its left and right vertices have the same y-coordinate and equal horizontal distances from that line.
Example: If the middle line is x = 7 and the left point is 2 units left at (5, 6), the right point is 2 units right at (9, 6).
Two More Worked Examples
Practise copying side movements on a parallelogram, then learn how to reflect a kite vertex across an offset symmetry line without assuming it lies halfway up the shape.
Find a Missing Parallelogram Vertex
Question: Where is point R in the parallelogram?
Worked Method
Step 1: The bottom side moves from (7, 4) to (11, 4), which is 4 units to the right.
Step 2: The top side must move the same way. Since top-right is (10, 7), move back 4 units to find top-left: x = 10 - 4 = 6.
Step 3: Opposite sides are parallel. The bottom side is horizontal, so the top side is horizontal too and y = 7.
Answer: R = (6, 7).
Tip: In a parallelogram, copy the movement along the opposite side. Do not assume the left and right sides are vertical.
Reflect a Kite Across an Offset Symmetry Line
Question: Where is point P in the kite? Its line of symmetry passes through the top and bottom vertices.
Worked Method
Step 1: The stated symmetry line passes through (4, 1) and (4, 6), so it is x = 4.
Step 2: The right vertex is 7 − 4 = 3 units to the right of this line. Reflect it 3 units to the left: x = 4 − 3 = 1.
Step 3: Reflection across a vertical line keeps the height unchanged, so y = 3.
Answer: P = (1, 3).
Check: The left and right vertices are each 3 units from x = 4. They are 6 − 3 = 3 units below the top and 3 − 1 = 2 units above the bottom. A kite’s vertical symmetry does not require these two vertical distances to be equal.
Tip: Reflect across the stated line, not automatically across the y-axis. Keep the known side vertex’s y-coordinate; averaging the top and bottom y-values would incorrectly give (6 + 1) ÷ 2 = 3.5 here.
